Fabric Reinforced Air Hose

Other name: Air delivery hose, Air rubber hose, Flexible Reinforced Air Hoses, Reinforced air tubing, High pressure rubber air pipe line, Air hose with cloth inserted
Tube: Black, excellent air impervious synthetic rubber.
Reinforcement: High-tensile synthetic fabric or cotton cloth.
Cover: Black synthetic rubber, weather and abrasion resistant.
Applications: For delivery of compressed air or inert gases in factories, mines, construction work, etc. It may be used to connect the pneumatic tools, pneumatic machines and so on.
Working Temperature: -35℃ to 80℃.


Fabric Reinforced Air HoseFabric Reinforced Air Hose

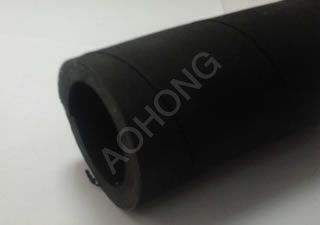

Structure pictureReal product picture

Specification:
I.D.Ply.W.P.B.P.LENGTH MAX.
MMINCHMPAMPAM/ROLL
131/2"2~30.5~1.02.0~4.020
165/8"3~40.5~1.02.0~4.020
193/4"3~70.5~1.02.0~4.020
251"4~70.5~1.02.0~4.020
321.1/4"4~70.5~1.02.0~4.020
381.1/2"4~80.5~1.02.0~4.020
512"5~100.5~1.02.0~4.020
642.1/2"5~100.5~1.02.0~4.020
763"5~100.5~1.02.0~4.020
893.1/2"5~120.5~1.02.0~4.020
1024"5~120.5~1.02.0~4.020
1275"5~120.5~1.02.0~4.020
1506"5~120.5~1.02.0~4.020




*

*

*

*
