Suction and Discharge Water Hose

Other name: pressure suction and discharge water hose, water suction hose, suction rubber hose, suction tube.
Tube: Black, smooth, synthetic rubber compound resistant to mud, sewage, waste water and week alkalizes and acids with PH value from 5 to 8.
Reinforcement: High-strength synthetic cord plus helix wire.
Cover: Black, smooth (wrapped finish) corrugated synthetic rubber compound resistant to abrasion, weathering, ozone and aging.
Application: Designed for water suction and discharge service, where a rugged yet flexible hose is required in industry, building and agriculture.
Working Temperature: -35℃ to 70℃


Suction and Discharge Water HoseSuction and Discharge Water Hose

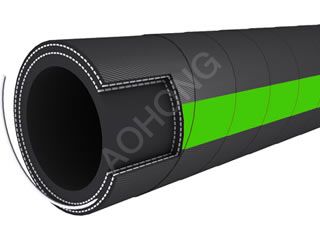

Structure pictureStructure picture
Suction and Discharge Water HoseSuction and Discharge Water Hose

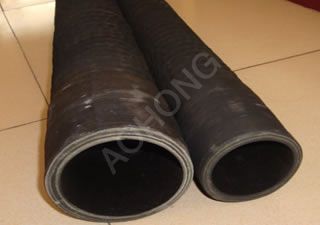

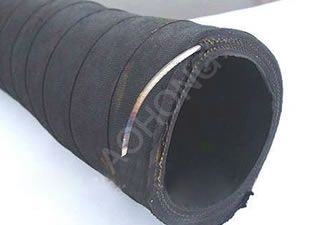

Real product pictureReal product picture

Specification:
I.DO.DW.P.B.P.WEIGHTLENGTH MAX.
MMINCHIMMMPAMPAKG/MM/ROLL
251”360.3~1.00.9~3.00.960
321.1/4”450.3~1.00.9~3.01.160
381.1/2”520.3~1.00.9~3.01.360
512"650.3~1.00.9~3.01.460
642.1/2"800.3~1.00.9~3.01.860
763"940.3~1.00.9~3.02.160
903.1/2"1080.3~1.00.9~3.0360
1024"1220.3~1.00.9~3.03.760
1275"1720.3~1.00.9~3.04.840
1526"1820.3~1.00.9~3.0740
2038"2400.3~1.00.9~3.01020




*

*

*

*
