Suction and Discharge Oil Hose

Other name: Oil suction hose, Oil resistance suction and discharge hose, pressure oil suction hose, Spiral wire reinforced rubber hose, corrugate rubber hose.
Tube: Black, smooth, nitrile rubber compound.
Reinforcement: High-strength synthetic cord plus helix wire.
Cover: Black, smooth (wrapped finish) high grade chloroprene rubber, compounded for an excellent resistance to weather, ozone, abrasion and oil.
Application: Used for the delivery and transfer of a wide range of petroleum products.
Working Temperature: -40℃ to 100℃


Suction and Discharge Oil HoseSuction and Discharge Oil Hose

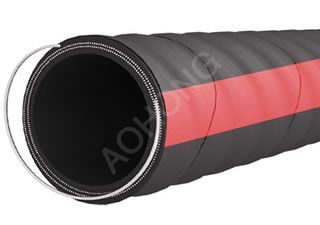

Structure pictureStructure picture
Suction and Discharge Oil HoseSuction and Discharge Oil Hose

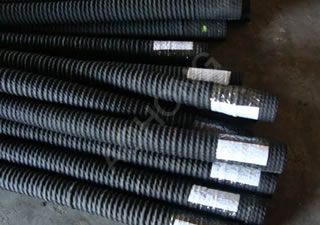

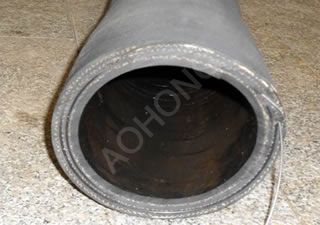

Real product pictureReal product picture

Specification:

I.D

O.D

W.P.

B.P.

WEIGHT

LENGTH MAX.

MM

INCHI

MM

MPA

MPA

KG/M

M/ROLL

25

1”

36

0.3~1.0

0.9~3.0

0.9

60

32

1.1/4”

45

0.3~1.0

0.9~3.0

1.1

60

38

1.1/2”

52

0.3~1.0

0.9~3.0

1.3

60

51

2"

65

0.3~1.0

0.9~3.0

1.4

60

64

2.1/2"

80

0.3~1.0

0.9~3.0

1.8

60

76

3"

94

0.3~1.0

0.9~3.0

2.1

60

90

3.1/2"

108

0.3~1.0

0.9~3.0

3

60

102

4"

122

0.3~1.0

0.9~3.0

3.7

60

127

5"

172

0.3~1.0

0.9~3.0

4.8

40

152

6"

182

0.3~1.0

0.9~3.0

7

40

203

8"

240

0.3~1.0

0.9~3.0

10

20





*

*

*

*
