Oxygen/Acetylene welding Hose

Other name: Welding hose, Oxygen welding hoses, Flexible Reinforced oxygen Hoses, Reinforced oxygen tubing, Rubber oxygen pipe line, Acetylene Rubber Hose, Acetylene welding Hose.
Tube: Black, smooth, synthetic rubber.
Reinforcement: High-tensile synthetic yarn braided or spiraled.
Cover: Blue or red, smooth (streaky finish) synthetic rubber, abrasion, weather and abrasion resistant.
Application: Suitable for welding and cutting equipment to transport oxygen/acetylene.
Working Temperature: -35℃ to 90℃.


Oxygen/Acetylene welding HoseOxygen/Acetylene welding Hose

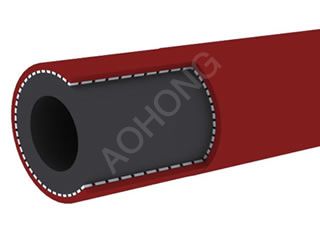

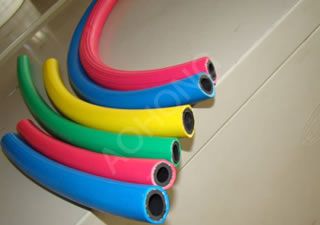

Structure pictureReal product picture

Specification:
I.D.O.D.W.P.B.P.WEIGHTLENGTH MAX.
MMINCHMMMPAPSIMPAPSIKG/MM/ROLL
53/16"121.0~2.0145~2903.0~6.0430~8700.13100±1%
61/4"131.0~2.0145~2903.0~6.0430~8700.15100±1%
85/16"151.0~2.0145~2903.0~6.0430~8700.23100±1%
103/8"171.0~2.0145~2903.0~6.0430~8700.26100±1%
131/2"221.0~2.0145~2903.0~6.0430~8700.36100±1%
165/8"251.0~2.0145~2903.0~6.0430~8700.53100±1%
193/4"291.0~2.0145~2903.0~6.0430~8700.64100±1%
251"361.0~2.0145~2903.0~6.0430~8700.85100±1%




*

*

*

*
