Fabric Reinforced Hot Water Hose

Other name: Hot water rubber hoses, Hot water delivery hose, Rubber water tubing, Reinforced hot water hoses, heat-resistance rubber hose.
Tube: Black, heat-resistance synthetic rubber.
Reinforcement: High-tensile synthetic fabric or cotton cloth.
Cover: Black synthetic rubber, weather and abrasion resistant.
Applications: For intermittent conveying of saturated vapor or superheated water at a temperature below 100℃.
Working Temperature: -35℃ to 100℃.


Fabric Reinforced Hot Water HoseFabric Reinforced Hot Water Hose

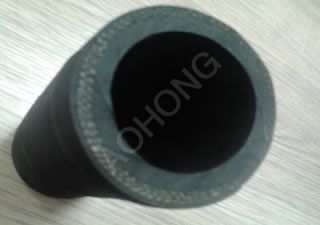

Structure pictureReal product picture

Specification:
I.D.Ply.W.P.B.P.LENGTH MAX.
MMINCHMPAMPAM/ROLL
131/2"1~30.3~1.00.9~3.020
165/8"2~40.3~1.00.9~3.020
193/4"2~70.3~1.00.9~3.020
251"2~70.3~1.00.9~3.020
321.1/4"3~70.3~1.00.9~3.020
381.1/2"3~80.3~1.00.9~3.020
512"4~100.3~1.00.9~3.020
642.1/2"4~100.3~1.00.9~3.020
763"4~100.3~1.00.9~3.020
893.1/2"4~120.3~1.00.9~3.020
1024"4~120.3~1.00.9~3.020
1275"4~120.3~1.00.9~3.020
1506"4~120.3~1.00.9~3.020




*

*

*

*
