Heat Shrinkable Tube

Material: Cross-linking Polyolefin

Color: Standard color available: Black, red, yellow, green, blue, white, gray, purple, brown (other colors are available at requesting)

Application: Insulating protection for components, terminals and junctions. Wires binding, Marking and Identifying, Mechanical protection.

Feature: Halogen Free, Environment Friendly, Flame-retardant, soft and flexible, insulating. Shrink under low temperature, meet ROHS standard.

Shrinking Ratio: 2:1

Longitudinal shrinking ratio:≤5%
Shrinking temperature: start at 70℃,and shrunk totally at 110℃(for thin wall) or
120℃(for normal wall).Continue operating temperature: -55℃~125℃.


Heat Shrinkable TubeHeat Shrinkable Tube

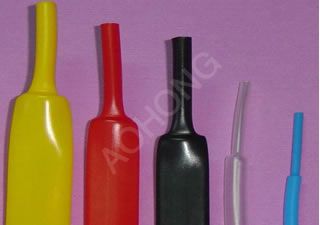

Real product pictureReal product picture
Specification:

Size
(mm)

Before shrinkage

After shrinkage

Standard packing
( M/spool)

I/D(mm)

Wall thickness(mm)

I/D(mm)

Wall thickness(mm)

Ø0.6

0.9±0.2

0.10±0.05

≤0.40

 0.22±0.10

400

Ø0.8

1.0±0.2

0.15±0.05

≤0.50

 0.22±0.10

400

Ø1.0

1.5±0.3

0.15±0.05

≤0.65

 0.28±0.10

400

Ø1.5

2.0±0.3

0.18±0.05

≤0.85

 0.32±0.10

400

Ø2.0

2.5±0.3

0.18±0.05

≤1.00

 0.35±0.10

400

Ø2.5

3.0±0.3

0.18±0.05

≤1.30

 0.38±0.10

400

Ø3.0

3.5±0.4

0.18±0.05

≤1.50

 0.40±0.10

400

Ø3.5

4.0±0.4

0.22±0.05

≤1.80

 0.42±0.10

400

Ø4.0

4.5±0.4

0.25±0.05

≤2.00

 0.45±0.10

400

Ø4.5

5.0±0.4

0.25±0.05

≤2.30

 0.50±0.10

200

Ø5.0

5.5±0.4

0.25±0.05

≤2.5

 0.55±0.10

200

Ø6.0

6.5±0.4

0.28±0.05

≤3.0

 0.55±0.10

200

Ø7.0

7.5±0.4

0.28±0.05

≤3.5

 0.55±0.10

100

Ø8.0

8.5±0.5

0.28±0.05

≤4.0

 0.60±0.10

100

Ø9.0

9.5±0.5

0.30±0.08

≤4.5

 0.60±0.10

100

Ø10

10.5±0.5

0.30±0.08

≤5.0

 0.60±0.10

100

Ø11

11.5±0.5

0.30±0.08

≤5.5

 0.60±0.10

100

Ø12

12.5±0.5

0.30±0.08

≤6.0

 0.60±0.10

100

Ø13

13.5±0.5

0.35±0.10

≤6.5

 0.65±0.10

100

Ø14

14.5±0.5

0.35±0.10

≤7.0

 0.65±0.10

100

Ø15

15.5±0.6

0.40±0.12

≤7.5

 0.70±0.10

100

Ø16

17.0±0.6

0.40±0.12

≤8.0

 0.70±0.10

100

Ø17

17.5±0.6

0.40±0.12

≤8.5

 0.70±0.10

100

Ø18

19.0±0.7

0.40±0.15

≤9.0

 0.80±0.15

100

Ø20

22.0±0.7

0.40±0.15

≤10.0

 0.80±0.15

100

Ø22

24.0±0.7

0.40±0.15

≤11.0

0.80±0.15

100

Ø25

26.0±0.7

0.55±0.15

≤12.5

 0.90±0.15

50

Ø28

29.0±0.7

0.55±0.15

≤14.0

 0.90±0.15

50

Ø30

31.5±0.7

0.55±0.15

≤15.0

 0.95±0.15

50

Ø35

36.5±0.7

0.55±0.15

≤17.5

 1.00±0.15

50

Ø40

41.5±0.7

0.55±0.15

≤20.0

 1.00±0.15

50

Ø45

46.0±0.7

0.55±0.15

≤22.5

 1.00±0.15

25

Ø50

51.0±0.7

0.55±0.15

≤25.0

 1.00±0.15

25

Ø60

≥60

 0.60±0.15

≤31.0

 1.30±0.20

25

Ø70

≥70

 0.65±0.15

≤36.0

 1.30±0.20

25

Ø80

≥80

 0.70±0.15

≤41.0

 1.46±0.20

25

Ø90

≥90

 0.70±0.15

≤46.0

 1.46±0.20

25

Ø100

≥100

 0.70±0.20

≤51.0

 1.46±0.20

25

Ø120

≥120

 0.70±0.20

≤61.0

 1.56±0.20

15

Ø150

≥150

 0.70±0.20

≤76.0

 1.56±0.20

15

Ø180

≥180

 0.70±0.30

≤91.0

 1.56±0.20

15





*

*

*

*
