SAE 100R7 Thermoplastic hydraulic hose Black Orange - non-conductive

Construction: This kind of hose is made of Inner Tube (Nylon), reinforcement (High Flexibility Nylon or Thermoplastic). It is Lightweight, Flexibility, and the inner tube is very smooth. With a few loss of Pressure, the hose resistance of the medium flowing is small, and it also owns a fine performance of Anti-chemical and Impulse.
Tube: thermoplastic inner tube (nylon)
Reinforcement: suitable synthetic fiber reinforcement.
Cover: hydraulic fluid and weather resistant thermoplastic cover.
Application: Automobile, Engineering Machinery, Lathe, Agriculture Machine, Mining, Spurting the Oil Paint, Avigation & Space flight, Cooling and other Hydraulic Control System.
Working temperature: -40℃~+93℃.


SAE 100R7SAE 100R7

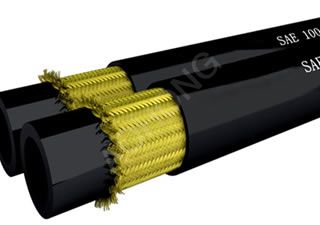

Structure pictureReal product picture

Specification:
Nominal SizeInside DiameterOutside DiameterWorking PressureBurst PressureMinimum Bend RadiusWeight
inchmmmmMPapsiMPapsimmkg/m
31/8"3.38.517.2250068.910000130.037
53/16"4.810.820.7300082.712000200.068
61/4"6.41320.7300082.712000330.085
85/16"7.915.117.2250068.910000460.103
103/8"9.51715.5225062.19000510.141
131/2"12.720.713.8200055.28000760.21
193/4"1927.18.6125034.550001270.287
251"25.4346.9100027.640002030.542




*

*

*

*
