Suction And Discharge Dredging Hose

Construction: Steel spiral wire and high tensile fiber reinforced, and wear resistant synthetic rubber cover.
Application: The flange discharge hoses are used for silt/gravels conveyance with Dredgers.
Working temperature: from -20℃ to 50℃.
Advantage: It is convenient to install, flexible to use, safe, abrasion-resistant and bending-resistant.


Suction And Discharge Dredging HoseSuction And Discharge Dredging Hose

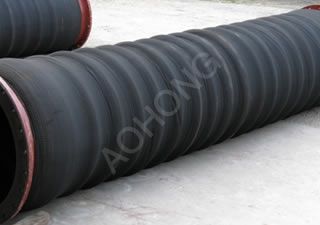

Structure pictureReal product picture

Specification:
IDODWPBPVPLength
mminchmminchMpabarMpabarKpabarm
1526"1827-1/4"1.2122.424800.820
2038"2339-1/5"1.2122.424800.820
25410"28411-1/5"110220800.810
30412"34013-2/5"110220800.86/10
35014"39015-2/5"110220800.86/10
45018"48619-1/5"0.771.515800.86/10
55022"59023-3/5"0.771.515800.86/10
60024"64025-3/5"0.771.515800.86/10
70028"75029-3/5"0.771.515800.86/10
80032"85033-1/2"0.55110800.86/10
100040"105041-1/2"0.55110800.86
120048"125049-1/5"0.55110800.86
130052"135053-1/5"0.55110800.86




*

*

*

*
