Transparent Reinforced PVC Hoses

Other name: PVC braided hoses, Clear Reinforced PVC Hoses, reinforced PVC tubing. clear reinforced water hoses, PVC braided reinforced hoses, wire reinforced PVC tubing, Transparent pipe line.
Inner Layer: high quality PVC material
Reinforcement: Polyester fiber
Outer Layer: high quality PVC material
Application: Excellent Chemical and physical property, very ideally for conveying water, oil and gas, Widely used in construction, agricultural, fishery, project, household and industrial service.
Add anti-UV material the hose can be used for long life span without color changed.
Working Temperature:-10°C To +65°C (14°F To +150°F)


Transparent Reinforced PVC HosesTransparent Reinforced PVC Hoses

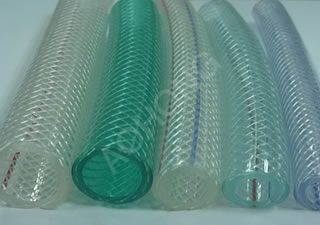

Structure pictureReal product picture

Specification:

size

Inner Diameter

Outer Diameter

Weight

Length

inch

mm

inch

mm

lb./ft.

kg/m

m/coil

1/4"

0.236

6

0.394

10

0.046

0.068

100

0.236

6

0.433

11

0.060

0.090

100

0.236

6

0.472

12

0.078

0.116

100

5/16"

0.315

8

0.472

12

0.058

0.086

100

0.315

8

0.512

13

0.075

0.112

100

0.315

8

0.551

14

0.094

0.140

100

3/8"

0.354

9

0.512

13

0.063

0.094

100

0.354

9

0.551

14

0.082

0.122

100

0.394

10

0.551

14

0.068

0.102

100

0.394

10

0.591

15

0.090

0.134

100

0.394

10

0.630

16

0.111

0.166

100

1/2"

0.472

12

0.630

16

0.080

0.120

100

0.472

12

0.669

17

0.103

0.154

100

0.472

12

0.709

18

0.129

0.192

100

0.512

13

0.669

17

0.086

0.128

100

0.512

13

0.709

18

0.111

0.166

100

0.512

13

0.748

19

0.137

0.204

100

5/8"

0.591

15

0.748

19

0.098

0.146

50

0.591

15

0.787

20

0.125

0.186

50

0.591

15

0.827

21

0.154

0.230

50

0.630

16

0.787

20

0.103

0.154

50

0.630

16

0.827

21

0.133

0.198

50

0.630

16

0.866

22

0.164

0.244

50

3/4"

0.748

19

0.906

23

0.121

0.180

50

0.748

19

0.945

24

0.154

0.230

50

0.748

19

0.984

25

0.189

0.282

50

0.748

19

1.024

26

0.225

0.336

50

0.787

20

0.945

24

0.126

0.188

50

0.787

20

0.984

25

0.161

0.240

50

0.787

20

1.024

26

0.197

0.294

50

0.787

20

1.063

27

0.236

0.352

50

1"

0.984

25

1.142

29

0.154

0.230

50

0.984

25

1.181

30

0.197

0.294

50

0.984

25

1.220

31

0.240

0.358

50

0.984

25

1.260

32

0.286

0.426

50

1-1/4"

1.260

32

1.496

38

0.300

0.448

40

1.260

32

1.535

39

0.355

0.530

40

1.260

32

1.575

40

0.412

0.614

40

1.260

32

1.614

41

0.471

0.702

40

1-1/2"

1.496

38

1.772

45

0.416

0.620

40

1.496

38

1.811

46

0.482

0.718

40

1.496

38

1.850

47

0.547

0.816

40

1.496

38

1.890

48

0.616

0.918

40

2"

1.969

50

2.283

58

0.618

0.922

40

1.969

50

2.323

59

0.703

1.048

40

1.969

50

2.362

60

0.787

1.174

40

1.969

50

2.402

61

0.875

1.304

40

1.969

50

2.441

62

0.962

1.434

40





*

*

*

*
